Robotics & Automation

Cable protection conduits

Robotic Dress Packs & Robot Connection Products

Murrplastik supplies a complete range of robotic dress packs for any robotic application. Our individual dress pack designs feature universally applicable fastening, conduit and protection elements for hydraulic, pneumatic and electronic cables and wires for all standard robots. We assemble and ship our dress packs as one complete unit, including cables and connectors, to make ordering and assembly as efficient as possible. We also offer specially developed cable protection conduits for complex robot applications that can stand up to extreme stress and movement. Specially modified materials and conduit geometry ensure optimal protection for your cabling. Murrplastik also supplies essential robotic and automation connection elements. Our tension clamp (axis 6) features an R-SSR wrist support that provides a fixing point on axis 6 and additional fastening elements can be affixed to the wrist support as required. R-FKM and R-FKE pipe clamps facilitate connecting R-SSR tension clamps with other components and the base plate serves to retain type SH system holders.

Cable Protection, Conduit Coupling & Fastening Elements

Our range of cable protection conduits provide the ultimate durable cable protection for industrial robots. Our varied selection includes characteristics such as high flexibility, crush resistance and impact strength, and is available in an array of materials. Murrplastik PR/SV protectors are made of specially modified polyamide 6, which is halogen, phosphor and cadmium-free. Our protectors are ideal for impact protection, connecting cable protection conduits and protecting against wear. PR/SV protectors benefit from a flat construction and simple assembly with a sliding lock and optional lock screw assembly. Murrplastik’s comprehensive range of robotics and automation products also includes accessories to help with the running and upkeep of your system. All of our products, including robotic dress packs, R-TecBox and R-Tec Liner, are available on our website.

R-Tec Liner, R-TecBox and Recirculation System

The R-Tec Liner is specially designed to manage energy packages from axis 3 to axis 6 for industrial robots. This unit features aluminium construction to protect the conduit and protects the energy package from any damage or wearing. The R-Tec Liner uses proprietary Murrplastik EWX corrugated conduit and can be stacked and installed either horizontally or vertically. While straight pass throughs allow for custom solutions. The R-TecBox is a specially designed unit that manages energy packages from axis 3 to axis 6 for industrial robots. The purpose of this system is to hold and control the unique integrated spring return system. It allows for a wide range of movement whilst keeping cables protected, organised and out of harm’s way. Some of the benefits of choosing the R-TecBox include its easy installation, high reliability and durability, and low operating noise. The recirculation system 21/29 is a space saving alternative to the R-TecBox. This adjustable, lightweight unit can handle a length adjustment of 150mm. The recirculation system can be mounted directly on the robot or attached with spacer sleeves, depending on whether the hole pattern fits. If the hole pattern does not correspond, then an additional adapter plate will be required for the installation.

Murrplastik also has a range of fastening elements, including:

  • SH system holder
  • KEG-AK telescopic joint
  • Strain relief cable star
  • KEG/K ball bearing

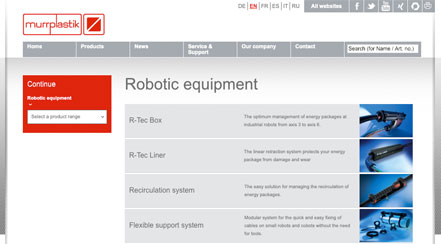

Access our parent website for full technical information on the complete Murrplastik Robotics & Automation range.
